ARC-R DUAL / DUAL-ROBOT SYSTEM
ARC-R Dual
Two W7 Robots, One Coordinated System
Work independently or as one system: split the work, weld in parallel or hand off a part.
OVERVIEW
Two Robots Change the Strategy
One robot welds while the other positions for the next operation. Divide the work by geometry, process, station or cycle.
FOR HIGHER-VOLUME STRUCTURAL PRODUCTION
ARCHITECTURE

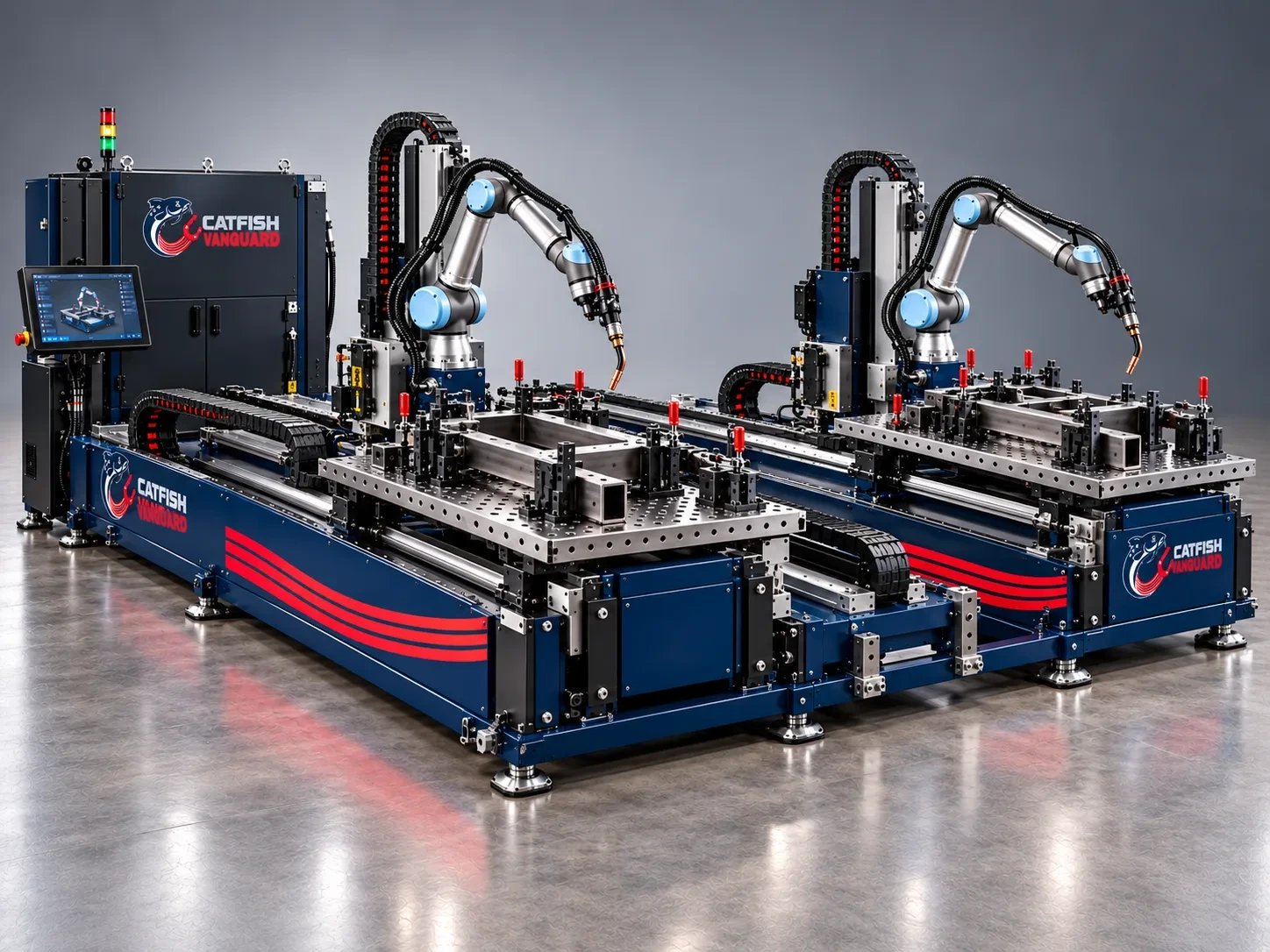

Two W7 Robots, One Controller
Each W7 has seven robot axes, fourteen combined. Control X manages the shared work zone.
W7 Robot A
Welds, handles or inspects.
W7 Robot B
Works in parallel or in sequence.
External Motion
Linear, vertical and positioner axes per configuration.
Shared-Zone Control
Control X keeps both robots coordinated and clear.
Mission Control
Orchestrates the work across both robots.
PROCESSES
Two Robots, More Ways to Divide the Work
Run both robots on one process, or let each take a different step.

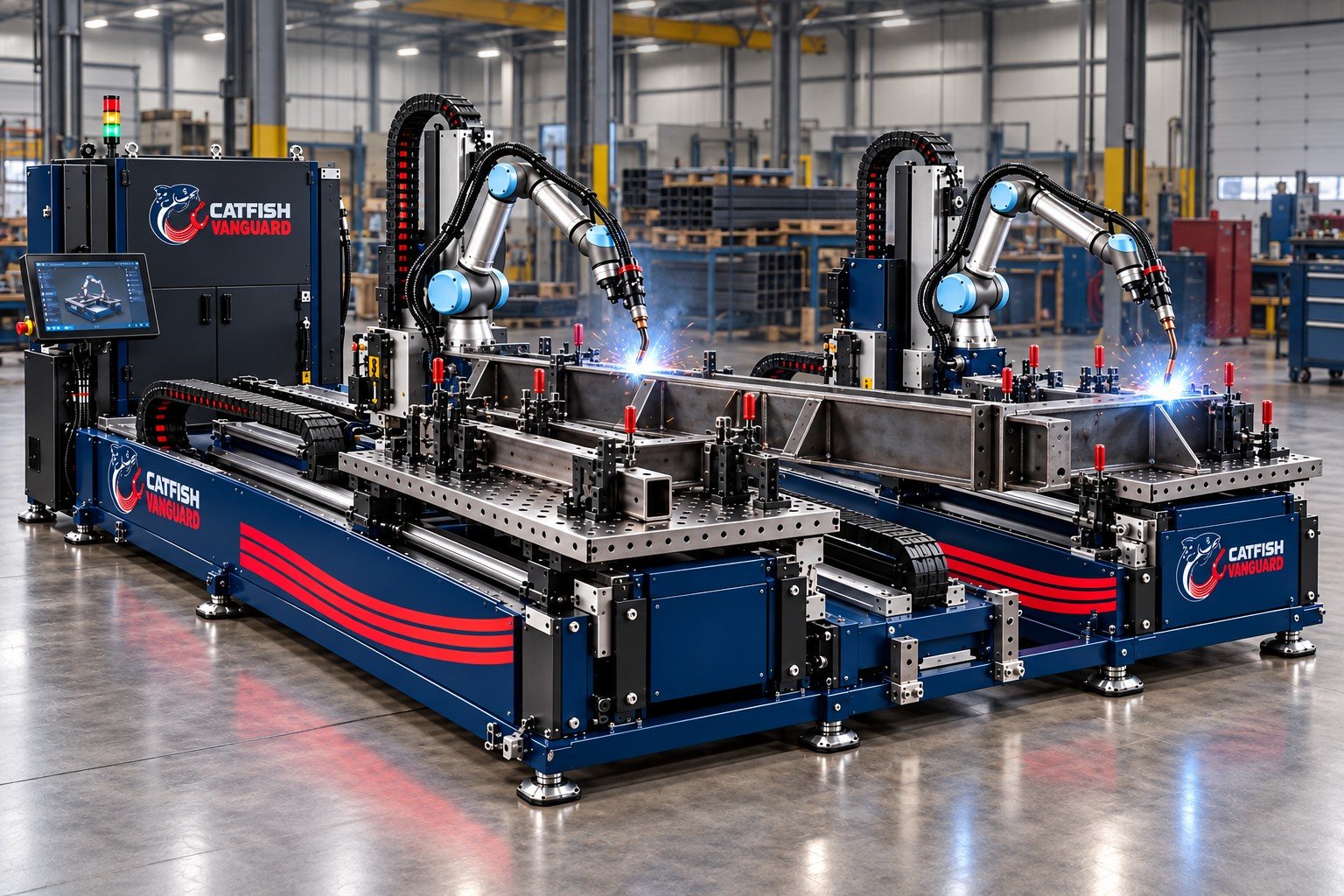

Parallel Welding
Both robots weld different seams at the same time.
WORKFLOW
Two Robots, One Production Record
- 01
Import
Bring the assembly into Catfish Studio.
- 02
Divide
Mission Control splits the work by geometry, process, station or cycle.
- 03
Sense
3D vision and laser seam finding locate the real joints.
- 04
Weld
Both robots work in parallel or hand off parts.
- 05
Record
Proof stores a record for every weld.
FUNCTIONS
Two Robots, One Weld List
Parallel Welding
Both robots weld different seams of the same assembly at the same time.
Robot Handoff
One robot positions or holds a part while the other welds it.
Weld-List Splitting
Mission Control divides the weld list between robots by reach, sequence and WPS.
Collision-Aware Shared Workspace
Control X plans both arms in one model so they never contest the same space.

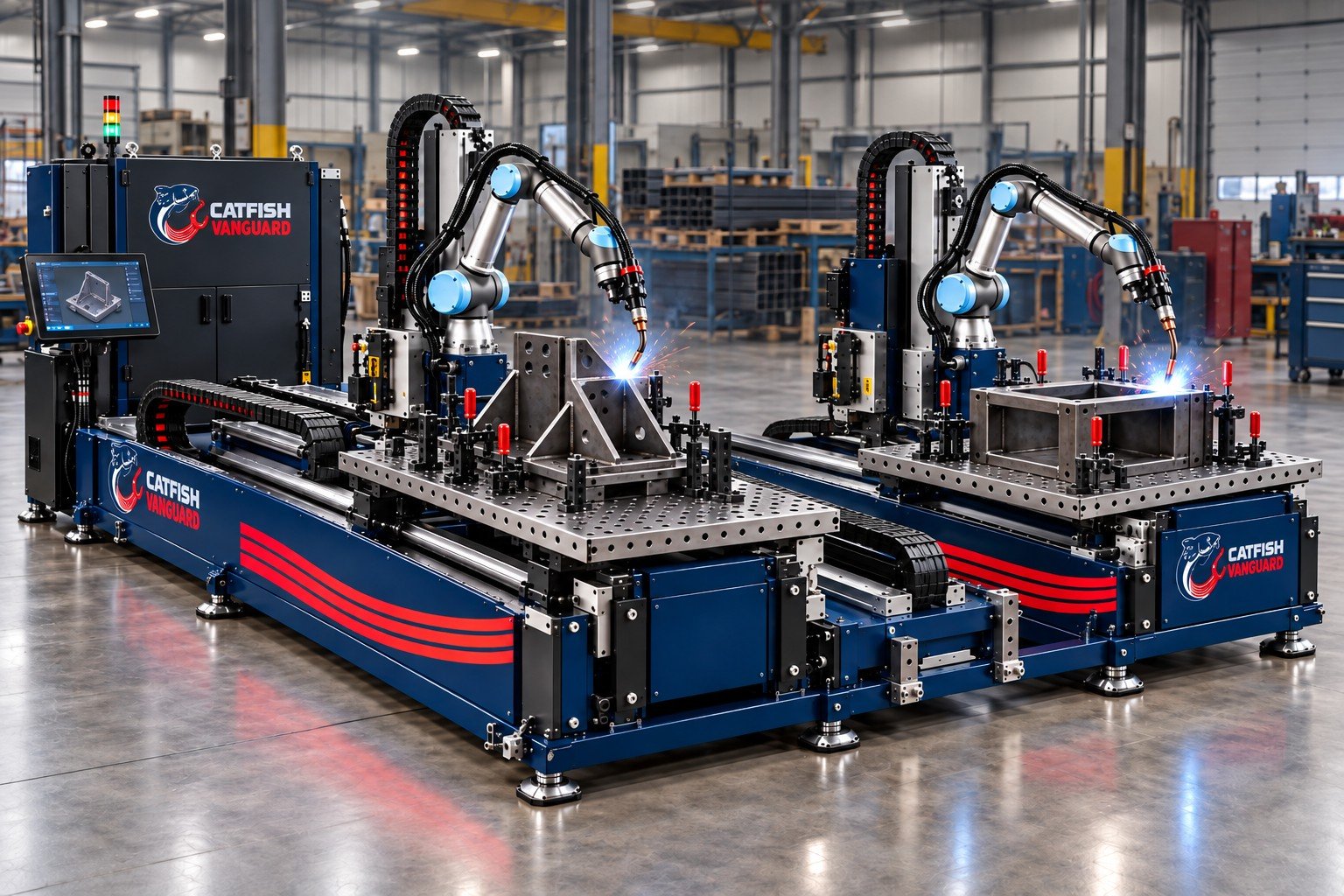

Independent Mode
Each robot runs its own station and job when the work does not need coordination.
Multi-Station Operation
Load one station while both robots weld at another.
Distortion-Aware Sequencing
Balanced weld sequences across two robots help manage heat input on long parts.
SPECIFICATIONS
ARC-R Dual Spec Sheet
Two-Robot Coordinated System
- 2 × W7
- Robots
- 14
- Robot axes
- 17
- Coordinated axes
- 20+
- With dual rails and lift axes
- Robots
- 2 × Catfish W7
- Robot axes
- 14
- Coordinated axes
- 17 with shared rail + 2-axis positioner
- Extended configuration
- 20+ with two rails and two vertical lift axes
- Workstations
- Single or multi-station
- Seam sensing
- Laser seam sensor on each robot
- Controller
- Control X coordinating both robots, rails and positioner from one EtherCAT master
- Robots
- 2 × Catfish W7
- Robot axes
- 14
- Coordinated axes
- 17 with shared rail + 2-axis positioner
- Extended configuration
- 20+ with two rails and two vertical lift axes
- Workstations
- Single or multi-station
- Seam sensing
- Laser seam sensor on each robot
- Controller
- Control X coordinating both robots, rails and positioner from one EtherCAT master
- Production modes
- Independent, Coordinated, Parallel; robot-to-robot handoff
- Work division
- Mission Control splits the weld list across both robots
- Collision validation
- Supported
- Job orchestration
- Supported
- Production monitoring
- Supported
- Traceability
- Supported
- Applications
- Larger structural assemblies, higher-throughput fabrication, marine components, structural steel, multi-station manufacturing, repetitive production with changing geometry
- Welding
- MIG/MAG, FCAW on both robots
- Parameters
- Each robot welds to the WPS assigned to its joints
- Adaptive correction
- Per robot, only within the approved procedure and configured process limits; every correction logged
- Work
- Stiffened panels, stiffeners, subassemblies, structural weldments
- Included
- Studio, Weld, Proof, Mission Control
- Optional
- Fleet
- Record per weld
- Robot ID plus current, voltage, wire feed, travel speed, torch angle, path, sensing corrections, WPS, operator, software version, inspection result
- Plant protocols
- OPC UA, PROFINET, EtherNet/IP, MQTT, shared by both robots through one controller
- Safety architecture
- Installation-specific industrial safety architecture
- Safety elements
- Emergency-stop circuits, safety-rated interlocks, safety PLC, perimeter guarding, access gates, area scanners, light curtains, machine-state monitoring, controlled zones, status towers, safe-stop functions
- Coverage
- Both robots and the shared workspace
- Real-time loop
- Cloud is never in the real-time loop
Specifications are engineering targets for current Catfish systems and are confirmed per installation at acceptance. Product notice
